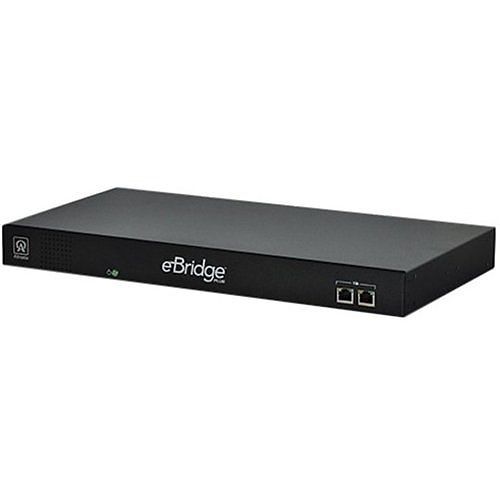

Altronix EBRIDGE800E EoC 8-Port Receiver, 100Mbps per Port, Generates PoE/PoE+, 115VAC/230VAC

Marka: Altronix
ADI #:EBRIDGE800E Model #: EBRIDGE800E  Nazwa: Altronix EBRIDGE800E EoC 8-Port Receiver, 100Mbps per Port, Generates PoE/PoE+, 115VAC/230VAC
  • 8-ports provide 30W full power per port
  • 240W total power
  • IEEE 802.3at (30W), IEEE 802.3af (15.4W)

Sale Type: Nowość

Altronix EBRIDGE800E EoC 8-Port Receiver, 100Mbps per Port, Generates PoE/PoE+, 115VAC/230VAC

Opis produktu

Informacje ogólne

Altronix eBridge800E is an all-in-one head-end solution for upgrading coax to IP that combines a PoE+ switch and EoC Receiver into a single integrated unit for upgrading existing coax infrastructure and deploying the latest IP devices. This 8-Port Managed EoC Receiver with Integral PoE+ switch provides 30W full power per port (240W max). Features also include a built-in battery charger for applications requiring backup and embedded LINQ Technology to monitor, control, and report power and diagnostics from anywhere.

Główne cechy
  • 8-ports provide 30W full power per port
  • 240W total power
  • IEEE 802.3at (30W), IEEE 802.3af (15.4W)
  • (2) 1Gb uplinks (10/100/1000 Mbps)
  • Each port rated at 100Mbps at distances up to 300m
  • Built-in IP management allows for remote camera reset and monitoring
  • Email and Windows Dashboard Alert notifications report real-time diagnostics
  • Eliminates the costs and labor associated with installing new network cabling
  • Retrofit digital IP cameras in an analog CCTV installation
  • Works with Megapixel, HD720, HD1080 and VGA (SD) cameras
Informacje
Kategoria : Mediakonwertery, Mediakonwertery i nadajniki, Produkty, Telewizja przemysłowa, Transmisja danych i sieci strukturalne, Urządzenia sieciowe
Kod EAN : 782239955046

Specyfikacje

Informacje ogólne

ADI Numer katalogowy
EBRIDGE800E
Model produktu
EBRIDGE800E
Nazwa marki
Altronix
Nazwa produktu
8-Port Managed EoC Receiver with Integral PoE Switch
Numer części producenta
EBRIDGE800E
Producent
Altronix
Typ produktu
EoC Receiver

Informacje techniczne

Zużycie energii
240W

Charakterystyka fizyczna

Szerokość
42 mm
Waga (przybliżona)
2,72 kg
Wysokość
216 mm

Informacje o produkcie

Długość
486 mm

Opis zasilania

Napięcie wejściowe
115-230V AC
